UTP-1500
The AVE UTP-1500
Video Adapter is a passive device which allows for the transmission
of video, audio and Pan / Tilt / Zoom (PTZ) or other modulated
embedded bi-directional control signals over Unshielded Twisted Pair
(UTP) cable. It will allow the signal to travel up to 3000 feet (900
meters) in B/W and 2000 feet (600 meters) in full color using CAT5
Cable. This simple to install device requires no tools, just push
and hold the locking buttons and insert the wire and
release.
|
Manual | | Cutsheet
| |
|
|

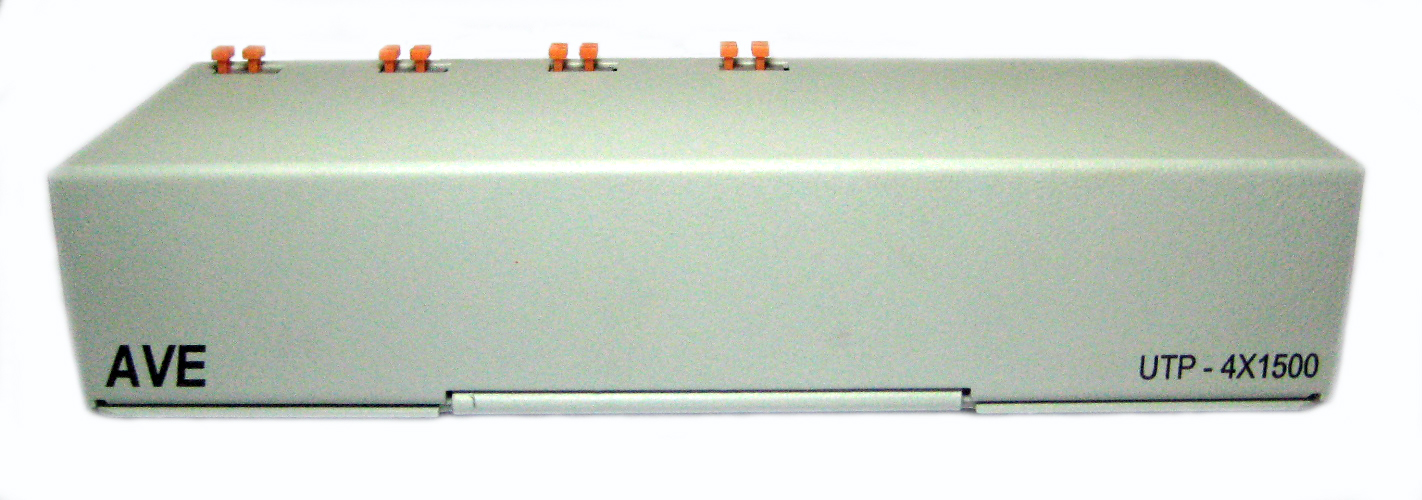

UTP 4X1500
UTP 4X1500 4 Camera
Hub with Push Cage Clamps & Structured Wiring RJ45 for use for
Transmitter or Receiver.
|
Installation Manual | | Cutsheet
| |
|
|

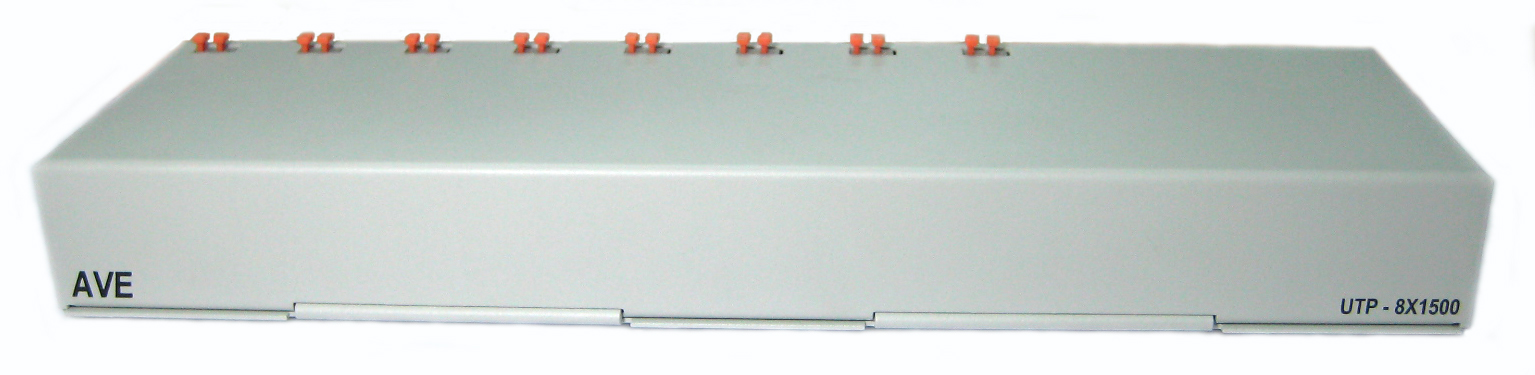

UTP
8X1500
UTP 8X1500 8
Camera Hub with Push Cage Clamps & Structured Wiring RJ45 for
use for Transmitter or Receiver.
|
Installation Manual | | Cutsheet | |
|
|
UTP
16X1500
UTP 16X1500 16
Camera Hub with Push Cage Clamps & Structured Wiring RJ45 for
use for Transmitter or Receiver.
|
Installation
Manual | | Cutsheet | |
|
|

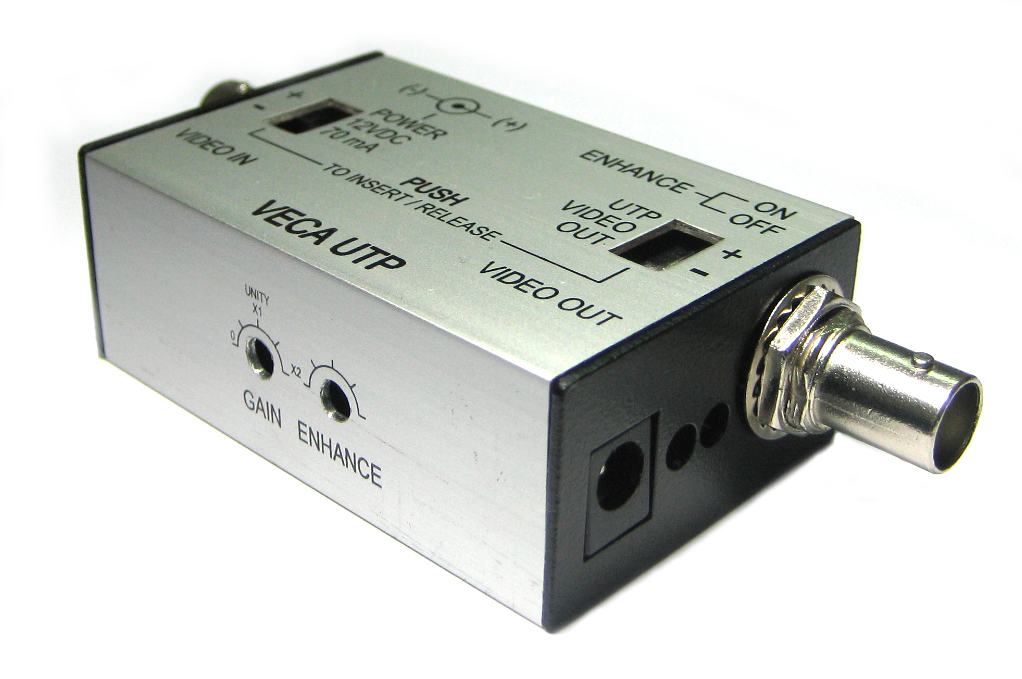

VECA
UTP
The VECA UTP is an inline active transmission device mounted on
the camera to compensate for video degradation due to long cables
for coaxial cables. It also includes the passive filter for
connection directly to UTP CAT3, 4, 5,or 6 cabling. There are two
controls on the VECA, one for Enhancing Color and the other for
Gain.
|
Manual
| |
|
|

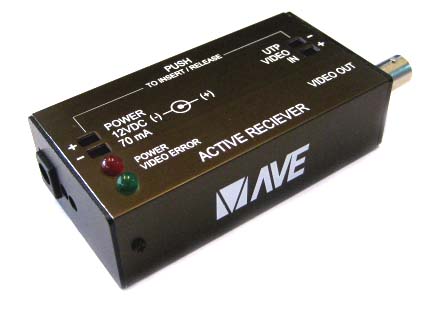

UTP Active Reciever ARXDXD
The ARXD Active Receiver is used in
conjunction with the AVE UTP-1500 passive transmitter or VECA
UTP when extended range and quality is required for a full color
signal to 1Km or 3000 ft. with CAT 3,4,5,5e,6 UTP wire. Full
surge suppression on both the power and video are standard.
Lightning strike suppression on the video input when properly
grounded with the isolated earth ground lug. Internal AGC
(Automatic Gain Control) automatically compensates for varying
line level changes over time so no user adjustments required.
Color boost and recovery to regain those brilliant colors even
in the worst environment. Low power 12 VDC operation. Video
Error LED for low or video loss indication.
| Manual |
|
|
|

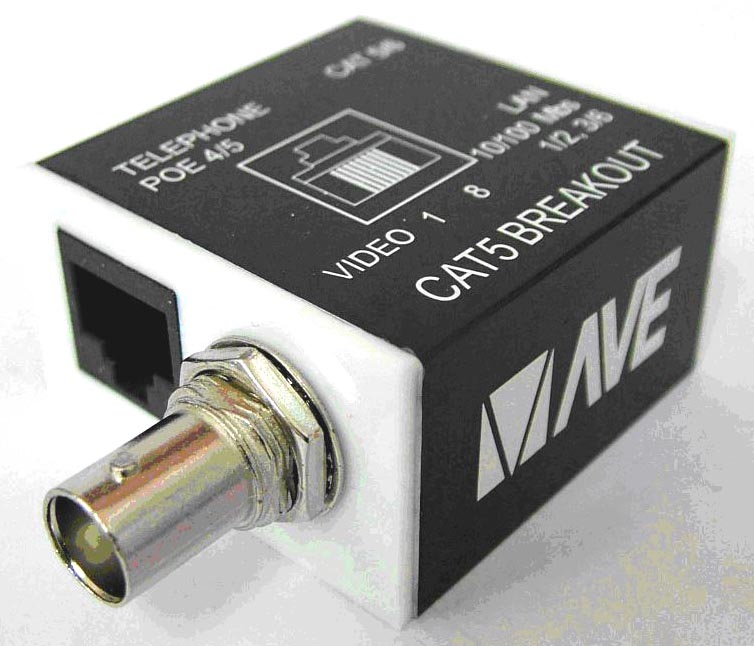

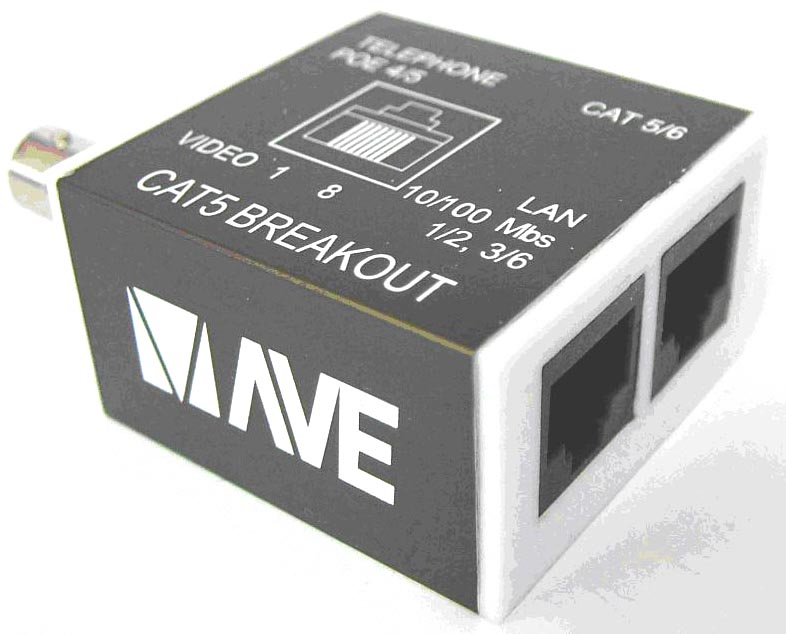

CAT5 Breakout
The CAT5 Breakout allows the use of standard CAT5, 5e or 6 to have full 10/100mbs Ethernet LAN and also the addition of Video and Telephone or Power on the same cable. This is an ideal solution to home wiring for LAN, telephone, door phone or front door video. Connectors are RJ45 for CAT5/5e/6, RJ45 for LAN, RJ45 for Telephone or Power and BNC for video.
| Manual | |
