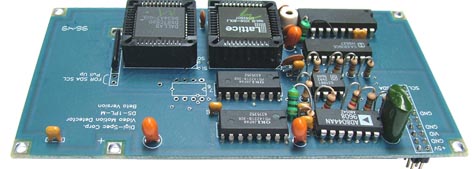

The DS1-PL-MS PCB module has all the powerful digital video motion detection circuitry of the DS1-PL on one small PCB.

Download the DS1-PL-MS PCB Data Sheet
You will need Acrobat Reader to view this file.Use the link below to obtain the correct version for your machine.
Get Acrobat Reader
This PCB is designed to be imbedded in OEM equipment.

All controls and responses are via I2C communication format.

All the user has to do is provide a composite video signal, 5VDC and the setup parameters and the DS1-PL-MS does the rest.

All connections via on one single 10x2 header connector.

SPECIFICATIONS
Unit Configurations

Motion Detection Parameters
Motion detection criteria can be programmed and independently assigned to any block or blocks of the on-screen zone pattern grid.
Size settings, 0 to 65,535 pixels
Sensitivity settings,0 to 99.
Tracking settings, 0 to 99 seconds

Activity Detection (VAD)
Preset Sensitivity, Trigger, and Tracking for any movement detection Zone blocks programmable independent of VMD settings.

Zone Pattern Grid: 280 zones (NTSC/PAL) for VMD and VAD

Video Format: 1 V p-p, 75 ohm termination. NTSC, PAL, and SECAM.

Power: 5 V DC @ 1 W Size: 12.7cm (L) x 6.4cm (W) x 1 cm (H)

2-Year warranty.
